MicroNet Documentation
Installation
MicroNet itself does not require any installation but it requires both a Docker Engine and an Eclipse IDE to be installed on the developers host. MicroNet was developed with Microsoft Windows but also works under Linux, and MacOS. The MicroNet Tools however are only tested on Windows.
Docker Installation
The most convenient way to use docker on a developer’s computer is by installing the Docker Desktop version which is available for MacOS and Microsoft Windows 10 Professional. On Linux a native docker installation can be used.
Windows 10
A Windows Pro version is required to use Docker Desktop because it requires HyperV to be enabled which is not possible on Windows Home Editions (see requirements in Install Docker for Windows). If you have Windows 10 Pro, enable HyperV as explained in the Windows documentation Install Hyper-V on Windows 10. Afterwards download and install the appropriate Docker Desktop client which can be found via the Official Docker Installation Documentation.
If you don’t have Windows 10 Pro the best alternative solution is to use the Docker Toolbox as explained below. In any case test your docker installation by using the docker info command.
Other Windows Versions
Older Windows versions or Windows 10 Home versions have to use Docker Toolbox as explained below.
Linux
On Linux choose the appropriate installation guide for your Linux opperating system: Ubuntu, Debian, CentOS, or Fedora.
MicroNet has not been tested intensively on Linux Operating Systems
MacOS
On Mac follow the official Docker Installation Manual for MacOS.
MicroNet has not been tested intensively on MacOS
Docker Toolbox
A fall-back plan if none of the above solutions work is to use Docker Toolbox. The Docker Toolbox uses VirtualBox as its virtualization technology which is widely supported on older operating systems. Use the Official Docker Toolbox Documentation to help you through the Docker Toolbox installation process.
Start Docker
Make sure to start docker before you continue. Docker is a basic requirement for MicroNet and must be always running to use the Tools and the Framework. Every time you start working with MicroNet make sure that Docker is running. The respective Docker Installation Guide also contains guidance on how to start Docker.
If you are using Docker Toolbox make sure that you always start it via the Docker Quickstart Terminal prior to opening Eclipse. Else the MicroNet Tools wont be able to access the Docker Daemon.
Eclipse Installation
An Eclipse Oxygen installation is required to use the MicroNet tools. It is recommended to download a new Eclipse Installation and use it solely for MicroNet because the MicroNet tools automatically synchronize specific files in the workspace. You do not want this behavior for any other workspace other than MicroNet workspaces.

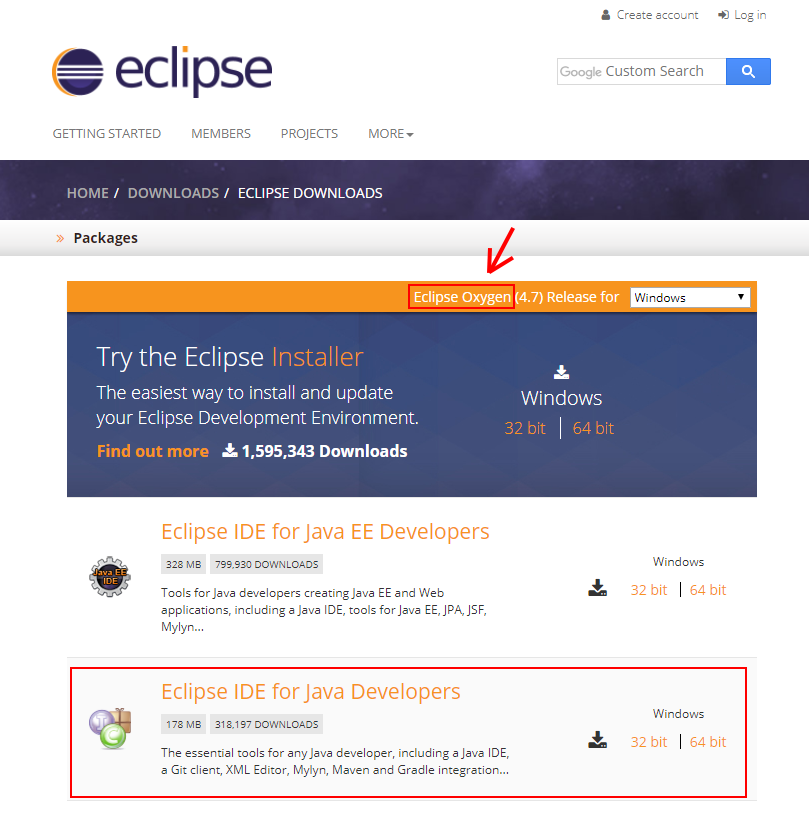

Download the Eclipse IDE for Java Developers from the Eclipse Download Page for your specific operating system as shown in the image below. Be sure to download the packaged version of Eclipse and not the installer to ensure the separation of the Eclipse used by MicroNet to other Eclipse installations.
The Enterprise Edition of Eclipse (Eclipse IDE for Java EE Developers) is not required for MicroNet development and it is therefore not recommended, to not overwhelm the developer with unused IDE funcionalities.
Extract the eclipse directory from the archive to you hard drive and start the contained eclipse executable.
MicroNet Tools Installation
Once Eclipse is open, navigate to the Help -> Install New Software… dialog. Press the Add… button in the top right to add a new Update Site to this Eclipse Installation. Enter MicroNet as the name and add https://mrharibo.github.io/updatesite/ as the location. Choose the MicroNet update site from the “Work with:” drop-down and install the MicroNet plug-in. This plug-in contains all MicroNet Tools.

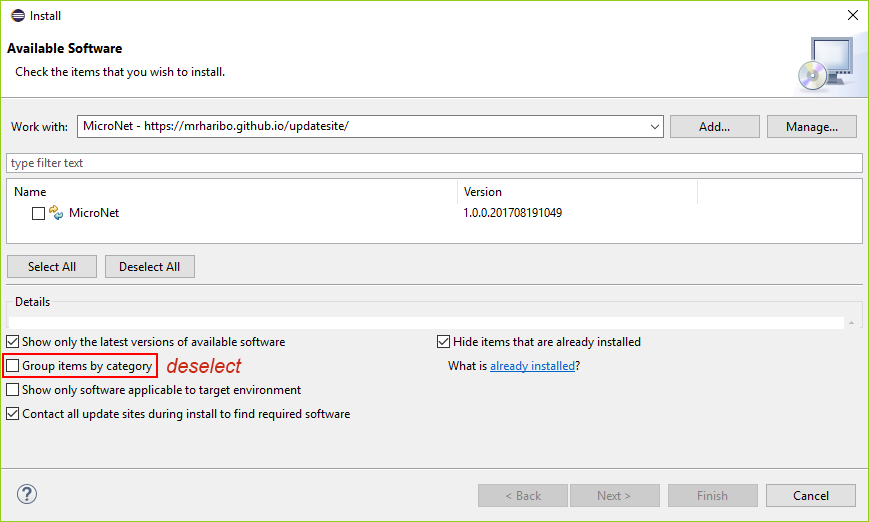

Sometimes the MicroNet category is not shown and the check box Group items by category must be deselected for MicroNet to show up as indicated in the image below.
Install Docker Tools for Eclipse
Although not mandatory it is recommended to install the Docker Tools for Eclipse. The Docker Tools are a handy collection of visual tools that make the management of the Docker Engine more comfortable. The Eclipse Docker Tools can be installed via the Eclipse Marketplace under Help -> Eclipse Marketplace…. Just enter “Docker Tools” in the search field as shown in the image below.

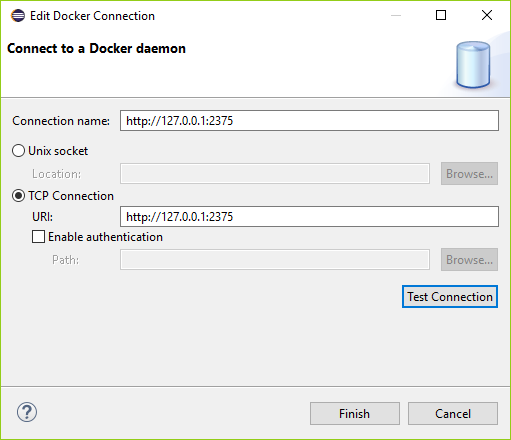

After installation make sure that the Eclipse Docker Tools are able to connect to the Docker Deamon. Connecting the Eclipse Docker Tools can sometime be a bit of a menace. For detailed explanation consult the Eclipse Docker Tooling User Guide for help. An example for the connection settings for Docker Desktop for Windows is shown in the image below. It might be also necessary to disable TLS for local connections to tcp://localhost:2375. You can do so in the Docker Desktop Client Settings Page under Settings -> General.
On MacOS it might be easiest to specify the location of the Docker Socket File.
Workspace Setup
When you open Eclipse you will be prompted a Workspace Directory. Every Game developed with MicroNet needs it’s own workspace directory referred to as the Game Workspace. You can use the same MicroNet Eclipse installation to develop multiple games by using a different workspace for each game. In this tutorial the Game Workspace directory will be “/MyGame”.
Adding a Java 8 JDK
MicroNet requires a JDK version of 1.8.X or higher. If you don’t have a JDK installed on your computer download the Java 8 JDK from the Official Java Download Page. Open the Preferences Window via Window -> Preferences and select the Java -> Installed JREs Preference Page. Select your Java 8 JDK and make sure to set it as default JRE.
MicroNet Settings

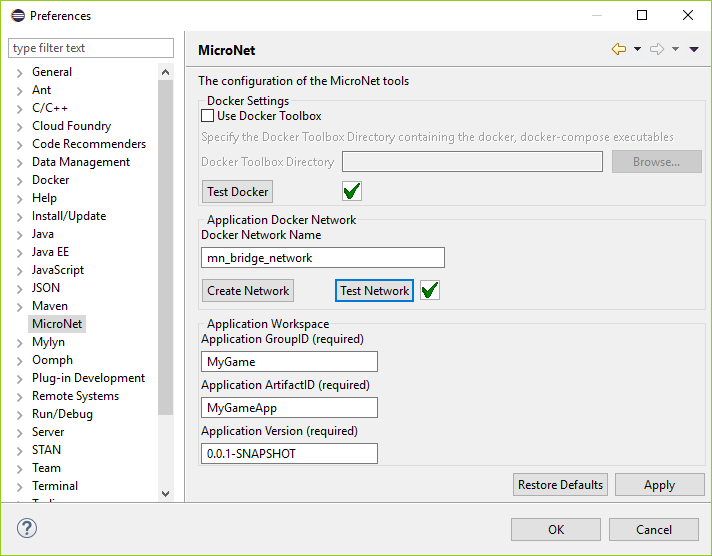

The workspace of a game contains a set of metadata that is automatically generated when the workspace is opened for the first time. The first step after opening the workspace should be to configure the generated metadata according to the game you want to develop. Open the MicroNet global preference page under Window -> Preferences -> MicroNet.
Docker Settings
Use the Docker Settings section to test if your Docker installation works correctly with MicroNet. If you are using Docker Desktop everything should work right away (assuming that docker command is available on the environment) and you can verify that by pressing the Test Docker button. If you are using Docker Toolbox specify the Docker Toolbox installation directory and also test your Docker Installation. Check the use Docker Toolbox checkbox accordingly.
The Docker Toolbox Directory should point to the directory of the Docker Toolbox installation containing the docker and docker-compose executables.
Application Docker Network
To ensure connectivity among Microservices a custom Docker Network must be created. It is recommended to use a separate network for all games that are developed in parallel to ensure game isolation. Enter a name for the network and press Create Network. Test your network with the Test Network button. You can also use a Docker Network that was created in advance but be sure to test it. In this tutorial “mn_bridge_network” will be used as the network name.
Application Workspace
The workspace of a game itself is a Maven project (containing a pom.xml) and the projects within the workspace are children of this parent Maven project and represent the Microservices of the application. The parent pom.xml is used to build the complete game application in one swipe.
Edit the game metadata according to the specification of your game and apply the changes using the Apply button to automatically store the metadata in the parent pom.xml. In this tutorial MyGame will be used as the groupId, MyGameApp will be used as the artifactId, and 0.0.1-SNAPSHOT will be used as the version.
Be advised that in the current version of MicroNet, changes to the parent pom.xml are not updated in the pom.xml files in child projects (service projects). Momentarily it is best to define the game Metadata once and leave it unchanged. In the rare case a change is necessary the child pom’s need to be updated by hand. Automation for this is planned for the future.
MicroNet will attempt to synchronize the parent pom.xml file automatically. If this process fails enexpectedly the parent pom.xml can become corrupted. In this case the developer has to “repair” by manually entering the matadata in the pom.xml located in the workspace root. Once repaired the automatical synchronization should work again.
Adding the MicroNet ServiceCatalog
Open the Preferences Dialog via Window -> Preferences and select the Maven -> Archetypes Preference Page. Add the two MicroNet Archetype Catalogs by choosing Add Remote Catalog… as indicated in the image below.
- MicroNet: https://mrharibo.github.io/catalog/archetype-catalog.xml
- MicroNet Examples: https://mrharibo.github.io/catalog/example-archetype-catalog.xml
Opening the MicroNet Views

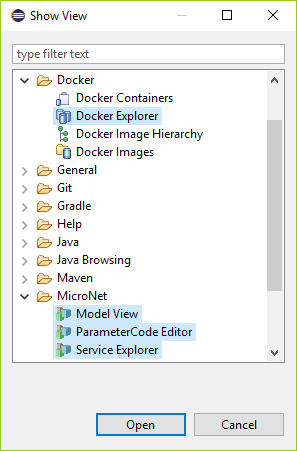

As a last step open all MicroNet Views. Open the Window -> Show View -> Other dialog and select all views listed under the MicroNet category. Also select the Docker Explorer under the Docker category. Confirm to open all views.
Opening the MicroNet Error Console

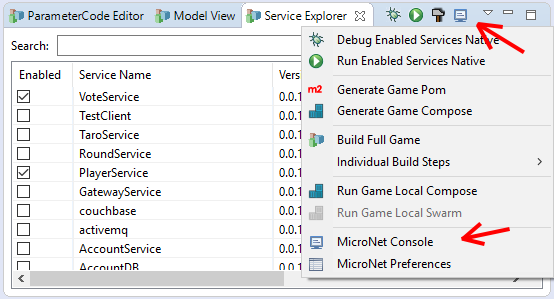

MicroNet is still under development any many aspects are still not covered by the framework. In this regard, MicroNet provides the MicroNet Console which shows all errors that happened in the background. Be sure to check it regularly or specifically if something failed silently in the background. The MicroNet console is available via the pull-down menu of the Service Explorer as indicated in the image below.
Whats Next
If you have successfully complete the previous steps you completed the installation process and are ready to start developing your first MicroNet application. Continue with the Basic Communication Tutorial.
